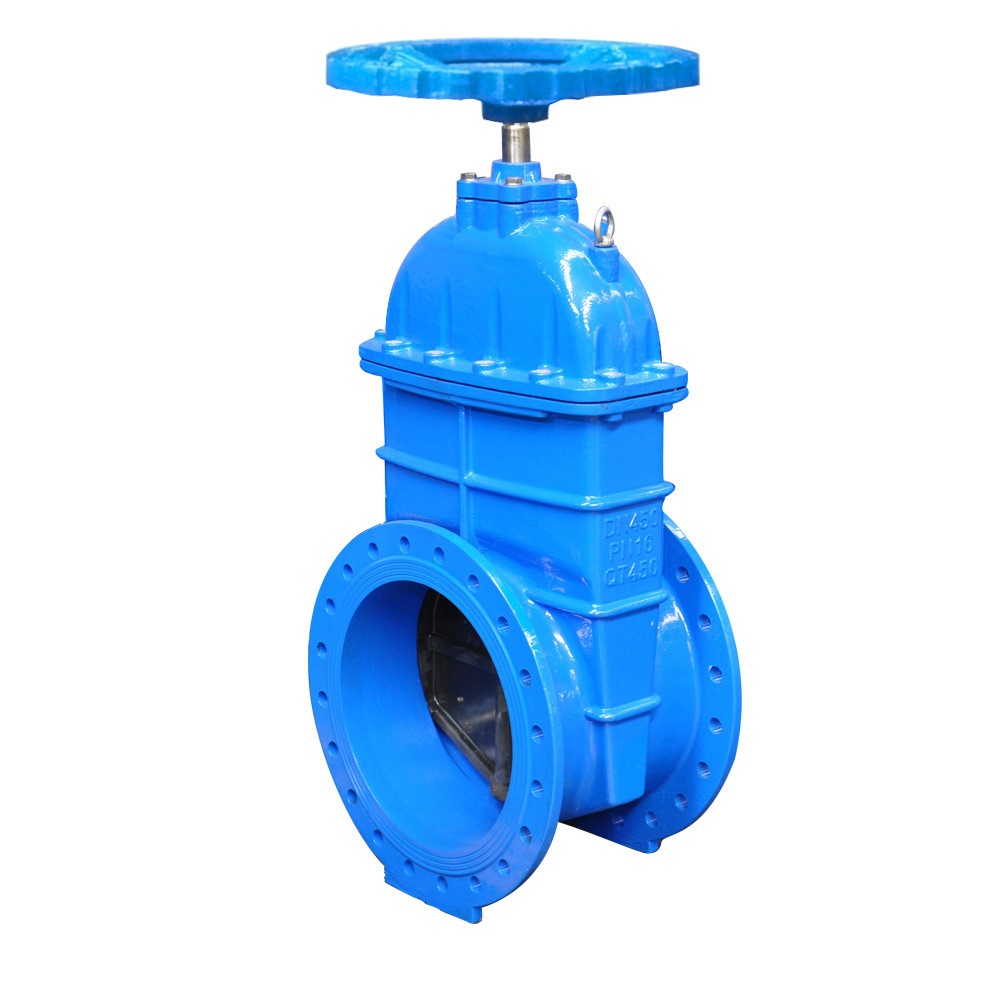

Ductile Iron Resilient Gate Valve bs:5163/is:14846

Product Features:
  • Wedge fully rubber lined all over EPDM
  • Optimum contact between body seating and rubber sealing surfaces on wedge.
  • Eliminate gland leaks and reduce gland friction torque substantially
  • Sealing surface are high quality smooth casting
  • Suitable for Vacuum of up to 100%.
coasting

Electro statically fusion bonded epoxy coating inside and outside with Ral 5005 Gr. Blue color with coating thickness of min. 250 microns or As desired by customer.
Size Range : 50mm to 1000mm
Hydrostatic Testing:

PN RATING BODY SEAL TEST DURATION(minutes)
BODY SEAT
PN 10 1.5 Mpa 1.0 Mpa 5 2
PN 16 2.4 Mpa 1.6 Mpa 5 2
Unique Chareacteristics:
  • Bubble tight seats
  • Minimum pressure drop
  • Very low operating toque.
  • Long life.
  • Straight through flow passage.
  • Operating temperatures for neutral liquids: 50’C
